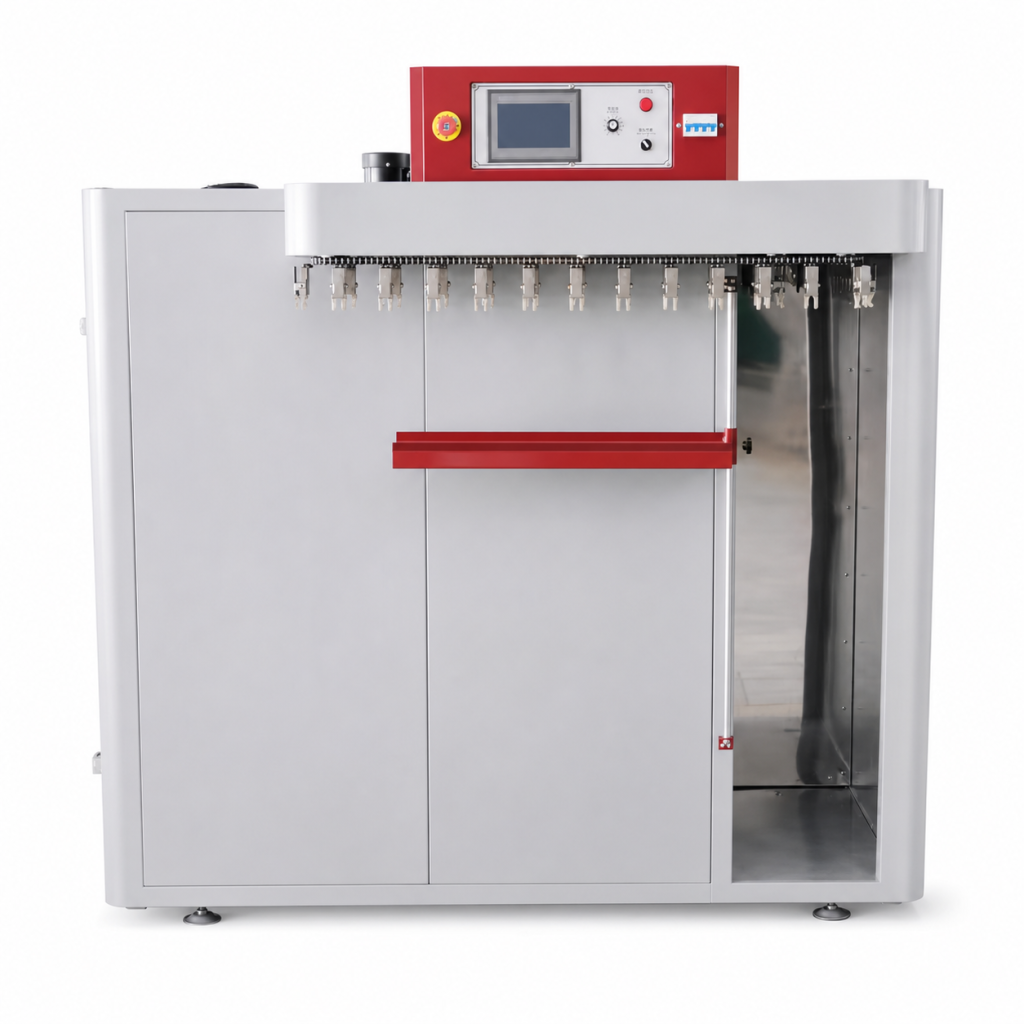

Rotary Oven Dryer Machine(Vertical)
Leather Belt Strip Drying Conveyor Oven for industrial production applications.
Include material thickness, product photos, required process, voltage and expected daily output.
Key Features

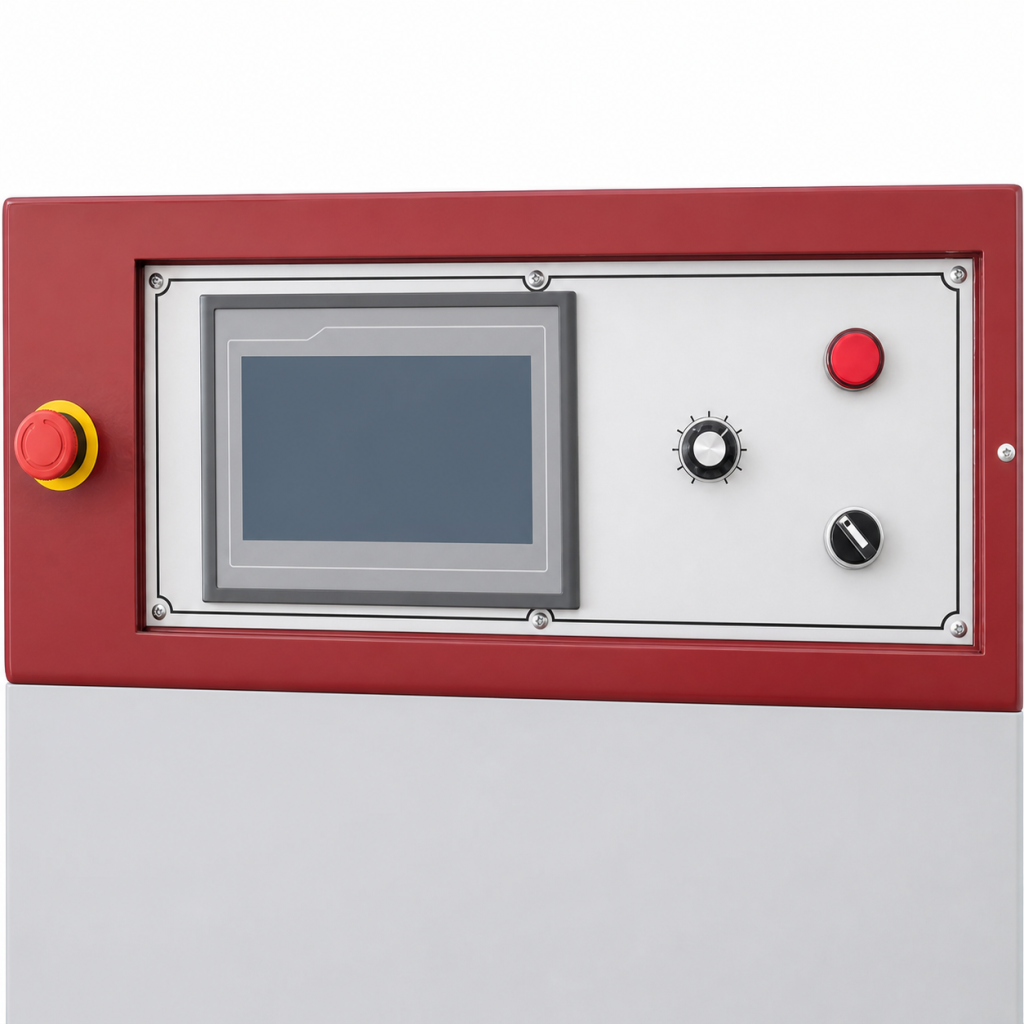

Centralized operator controls(PLC optional)
The front control panel places the display, emergency stop and adjustment controls together for convenient operation. The drying time is 3 to 8 minutes. The temperature rises quickly and energy is saved. By using infrared rays to dry from the inside, leather can be dried very gently. It is equipped with a temperature sensor and a temperature controller, making it very easy to reach the set temperature. It is mainly used for drying operations after oil edge dyeing or gluing of belts, handbags, shoulder straps, etc.

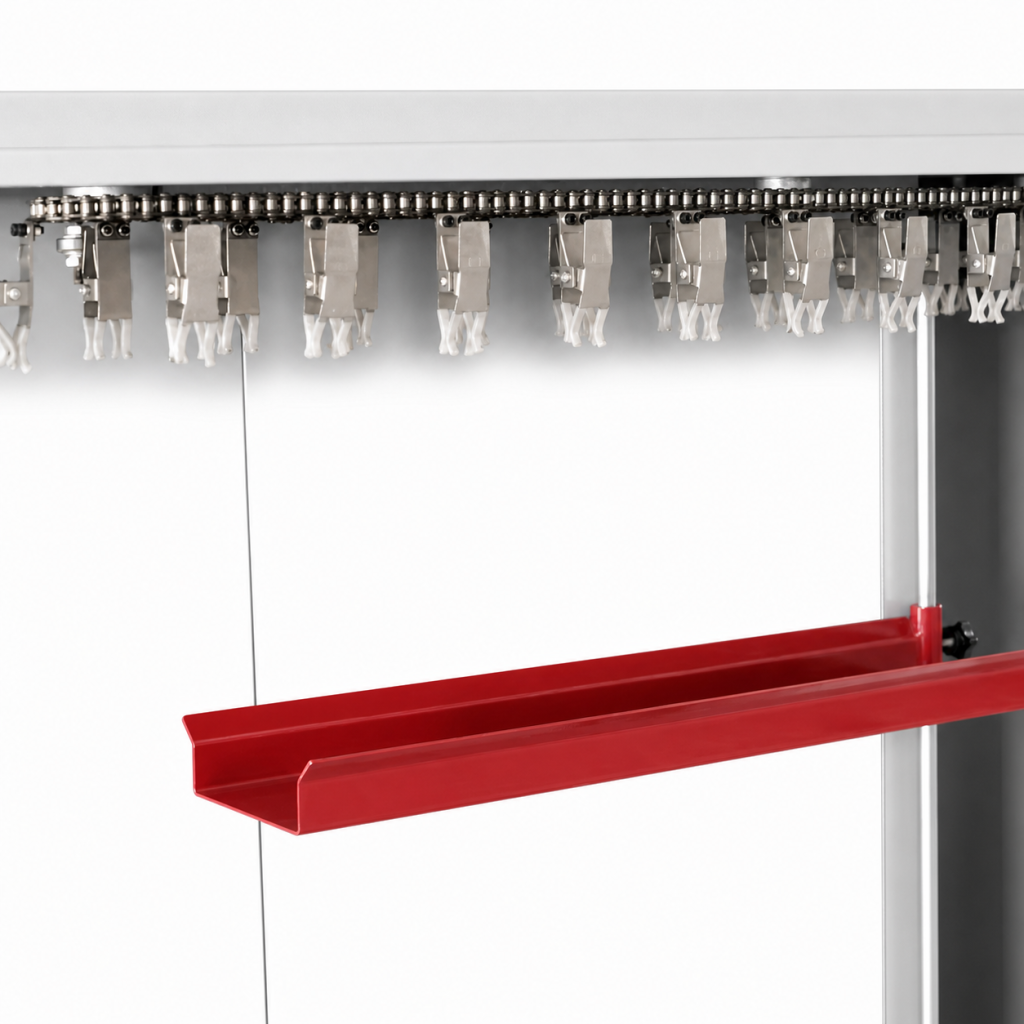

Hanging conveyor for belt strips
The suspended carrier line holds multiple belt strips separately as they move through the drying chamber.
Technical Data
Confirmed machine parameters are presented below in a clear table.
| Model | JST-D005 |
|---|---|
| Machine type | Leather belt strip drying conveyor oven |
| Automation | Automatic |
| Voltage | 220 V / 380 V |
| Power | 3 kW |
| Overall dimensions | 1,300 × 1,600 × 2,000 mm |
| Working range | 20–130 cm |
| Conveyor speed | 6 rpm |
| Application | Drying ink after leather belt inking |
