JST-YB-007Leather Edge Coloring & Inking Machines

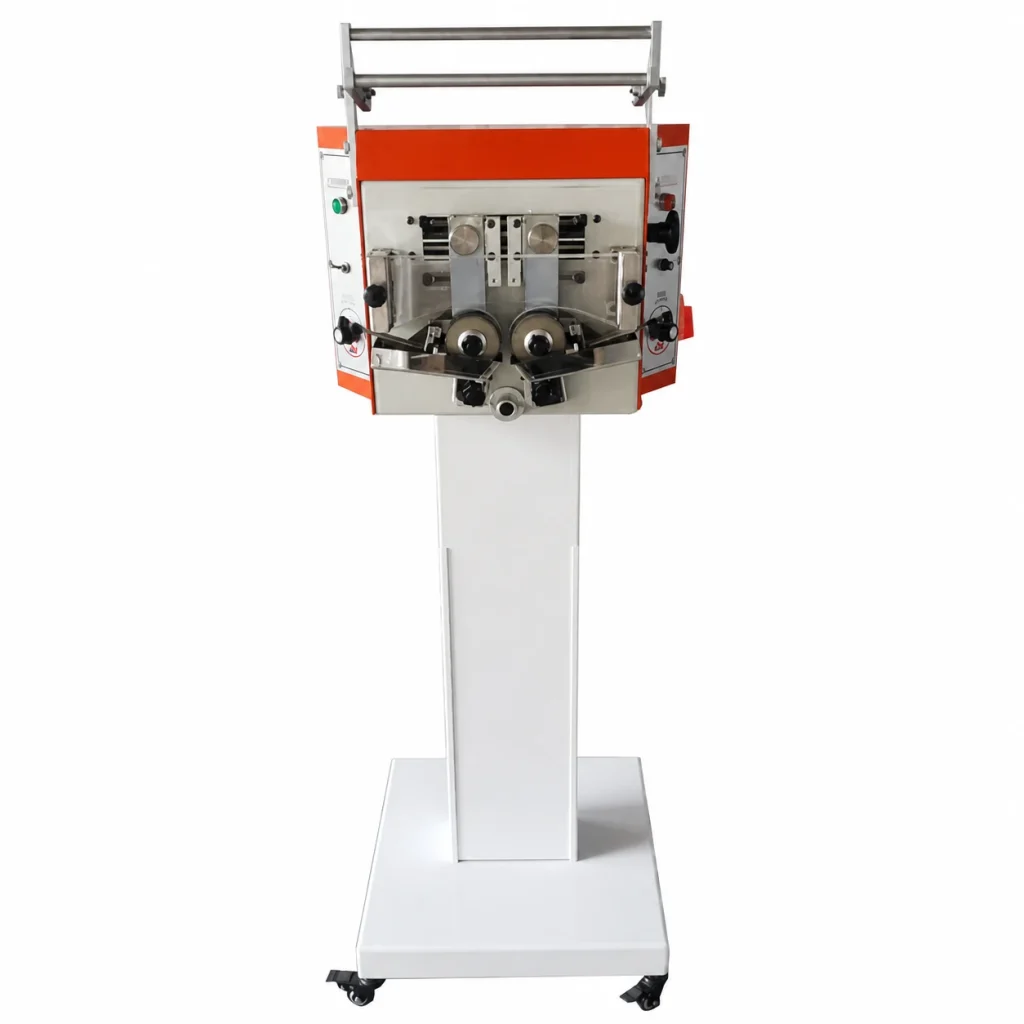

JST-YB-007 Vertical Double-Side Belt Edge Coloring Machine
Vertical Double-Side Belt Edge Coloring Machine
Include material thickness, product photos, required process, voltage and expected daily output.
What this machine can do
Key Features
Suitable for simultaneous dyeing on both sides of belts and shoulder straps.
Equipped with speed regulator for easy adjustment of working speed.
Built-in sensor makes operation easy and improves efficiency.
Ink adjustment system allows easy control of ink coating thickness.
Adjustable operating height for different workstations, easy oil change and head cleaning.
Application: Belt processing, strap dyeing
Technical data
Technical Data
Confirmed machine parameters are presented below in a clear table.
| Type | Leather edge inking machine |
|---|---|
| Voltage | 220V |
| Power | 60W |
| Automation Level | Manual |
| Key Components | Bearing, motor, pressure vessel, gear |
| Machine Dimension (L×W×H) | 530 × 450 × 1460 mm |
| Net Weight | 65 kg |
| Working Width | 5-80 mm (adjustable 3-70mm) |
Product inquiry
Get the Correct Model and Configuration
Share your workpiece, material, target output and destination voltage.
