JST-YB-005Leather Edge Coloring & Inking Machines

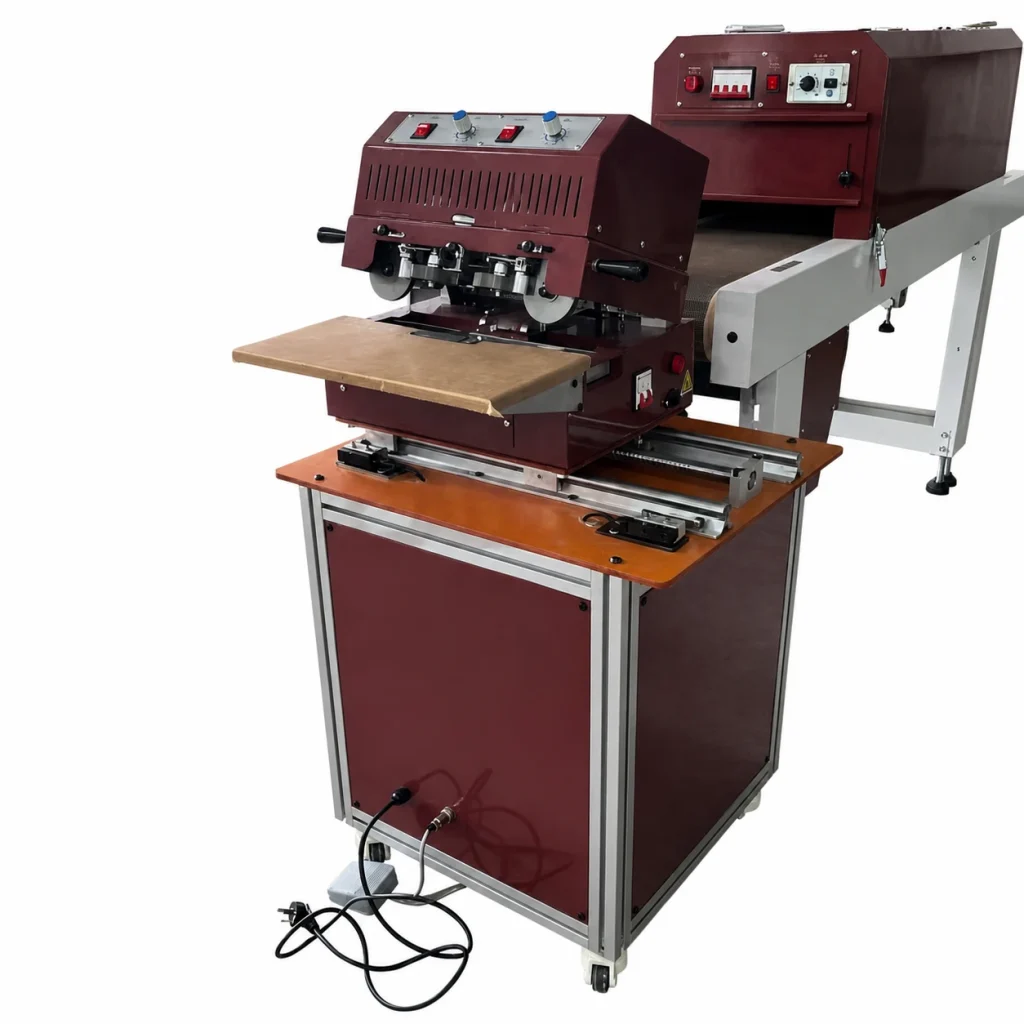

JST-YB-005 Horizontal Dual-Track Leather Edge Oiler and Dryer Machine
Horizontal Dual-Track Edge Oiler & Dryer with Conveyor Oven Integration
Include material thickness, product photos, required process, voltage and expected daily output.
What this machine can do
Key Features
Suitable for double-side edge oiling on men’s/women’s belts, watch straps, shoulder straps, handbags – horizontal operation.
Can be connected to assembly line oven – after oiling, material flows directly into oven for drying, oil thickness, material width and feeding speed adjustable.
Easy to change edge oil and clean oil tank & wheels; electronic stepless speed regulation, coaxial output ensures absolute concentricity.
Technical data
Technical Data
Confirmed machine parameters are presented below in a clear table.
| Type | Ironing / oiling & drying machine |
|---|---|
| Voltage | 220V |
| Power | 7000W |
| Automation Level | Automatic |
| Key Components | Motor, pressure vessel |
| Machine Dimension (L×W×H) | 750 × 3500 × 1100 mm |
| Net Weight | 175 kg |
| Gross Weight | 230 kg |
| Applicable Width | 4-70 mm |
| Applicable Thickness | 1-10 mm |
Product inquiry
Get the Correct Model and Configuration
Share your workpiece, material, target output and destination voltage.
