JST-CD-002Leather Skiving & Splitting Machines

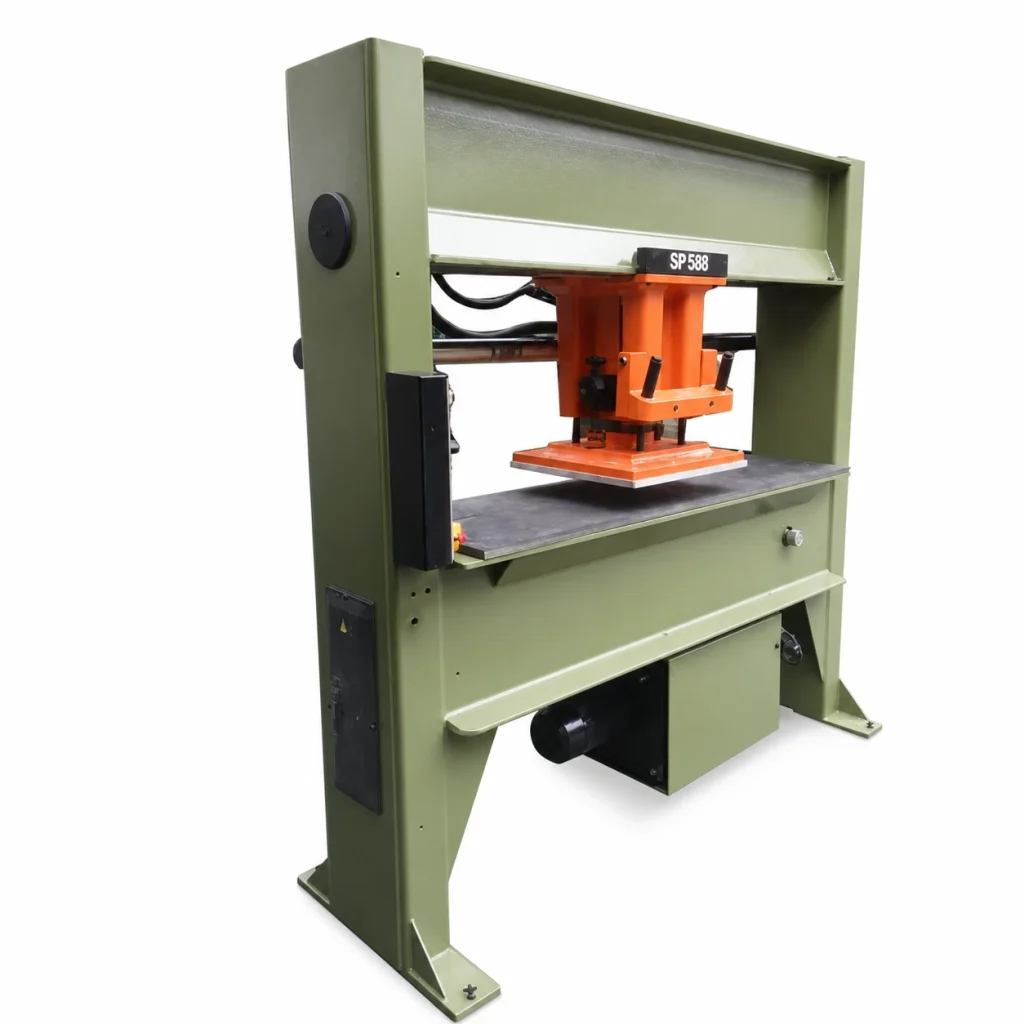

JST-CD-002 Beam Traveling Head Hydraulic Clicker Cutting Machine for Leather
Beam Traveling Head Hydraulic Clicker Cutting Machine for Leather
Include material thickness, product photos, required process, voltage and expected daily output.
What this machine can do
Key Features
Suitable for cutting leather, rubber, fabric, and other soft materials in shoe, bag, and leather goods industries.
Button control with time-interlock synchronization ensures operator safety.
High cutting precision, smooth cart displacement, high power continuity and low energy consumption.
High reliability with no daily maintenance required; refurbished unit in good condition at affordable price.
Technical data
Technical Data
Confirmed machine parameters are presented below in a clear table.
| Type | Beam traveling head hydraulic clicker |
|---|---|
| Model | JST-CD-002 |
| Cutting Force | 25 tons |
| Voltage | 380V / 220V |
| Power | 2 kW (2 HP) |
| Automation Level | Automatic |
| Key Components | Engine, motor, pump |
| Machine Dimension (L×W×H) | 2000 × 900 × 2100 mm |
| Net Weight | 1400 kg |
| Table Size | 1700 × 500 mm |
| Cutting Stroke | 5-100 mm |
| Head Size | 500 mm |
| Condition | Refurbished |
