JST-810Industrial Sewing Machines
Round Head Single Needle Post Bed Sewing Machine
Suitable for Heavy-duty materials (genuine leather, canvas, shoe uppers, thick synthetic fabrics)
Include material thickness, product photos, required process, voltage and expected daily output.
What this machine can do
Key Features

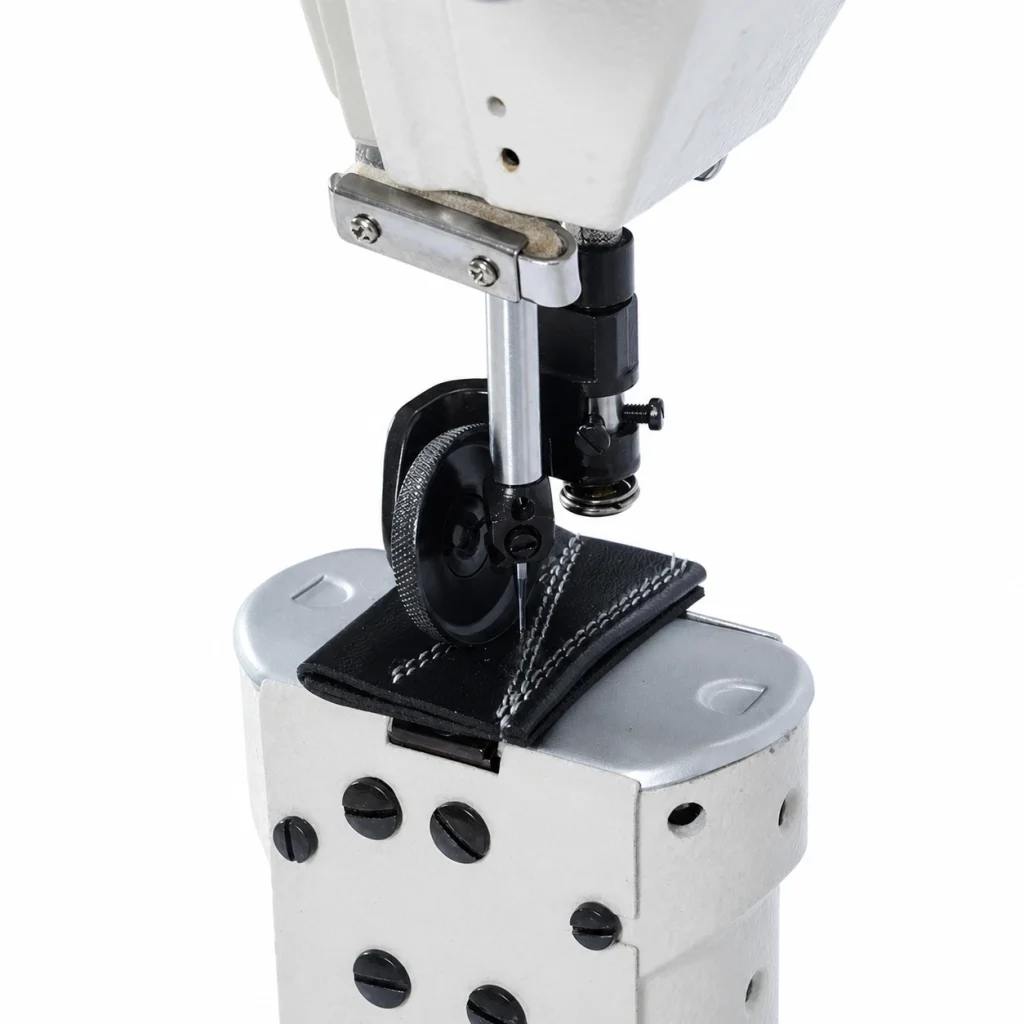

Round post-bed sewing area
The round post bed gives the operator access around curved shoe-upper and leather components.

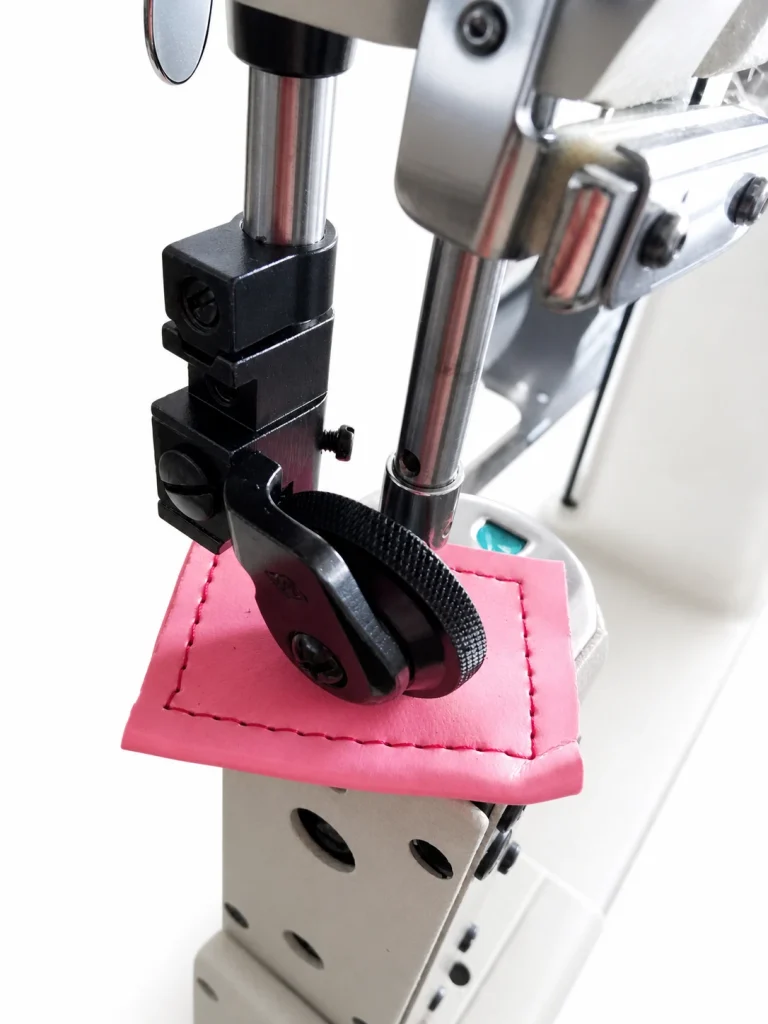

Roller and needle area
The roller and needle zone is arranged for controlled stitching along shaped material edges.
Technical data
Technical Data
Confirmed machine parameters are presented below in a clear table.
| Lubrication | Semi-automatic low-consumption lubrication system |
|---|---|
| Application | Heavy-duty materials (genuine leather, canvas, shoe uppers, thick synthetic fabrics) |
| Max. sewing speed | 2000 stitches per minute (spm) |
| Max. stitch length | 6mm (fully adjustable) |
| Feed system | Needle and feed dog synchronous feed system |
| Presser foot height | 8mm (manual lift), 12mm (knee lift) |
| Needle bar stroke | 34mm |
| Needle type | DP×17 (#16–#23) |
| Max. material thickness | 7–8mm (thick leather/fabric) |
| Quick back device | Standard equipment |
| Thread tension control | Standard equipment |
| Weight | 52kg (net weight), 60kg (gross weight) |
| Power | 250W servo motor (400W optional) |
| Voltage | Single phase: 110V/220V, compatible with global voltage standards |
