JST-341Industrial Sewing Machines

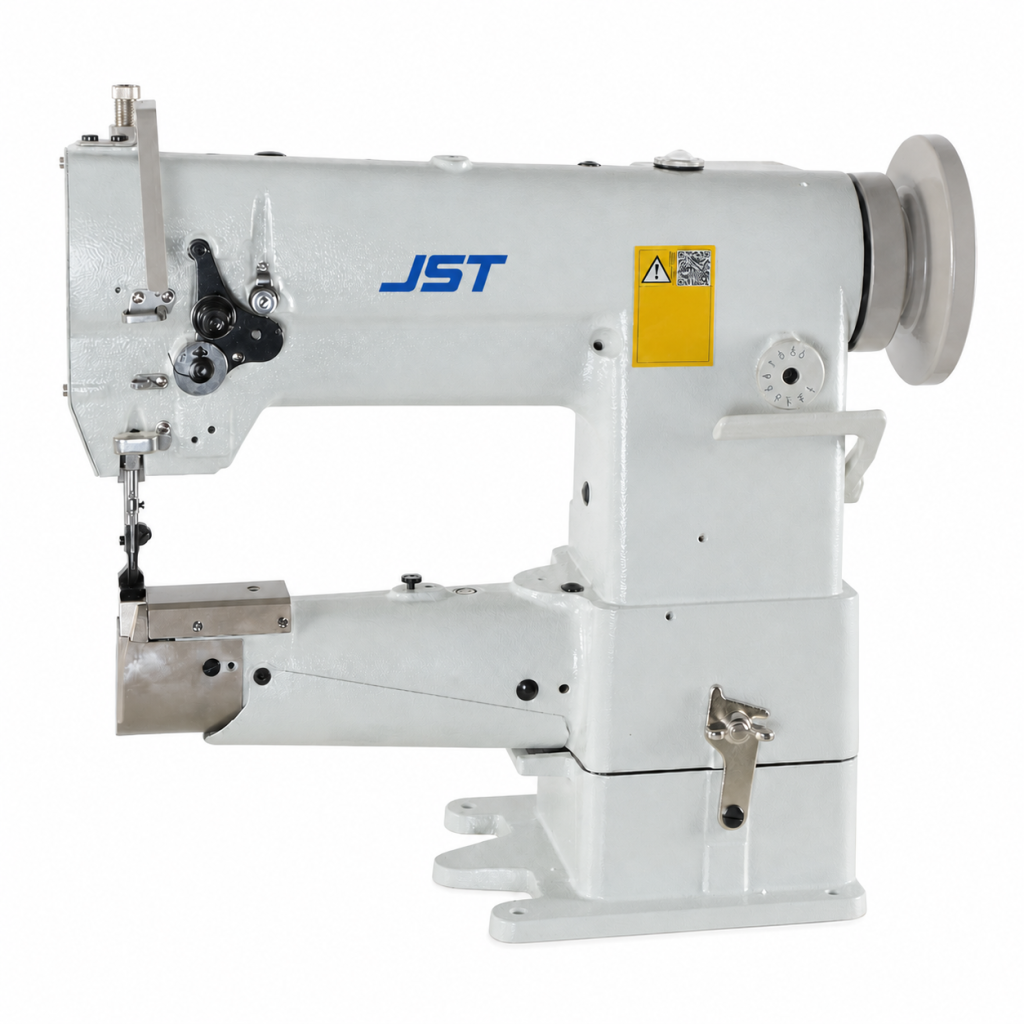

High-Speed Cylinder Arm Sewing Machine for Leather and Luggage
Suitable for Mattress, thick leather, luggage, automotive supplies, multi-layer materials
Include material thickness, product photos, required process, voltage and expected daily output.
What this machine can do
Key Features

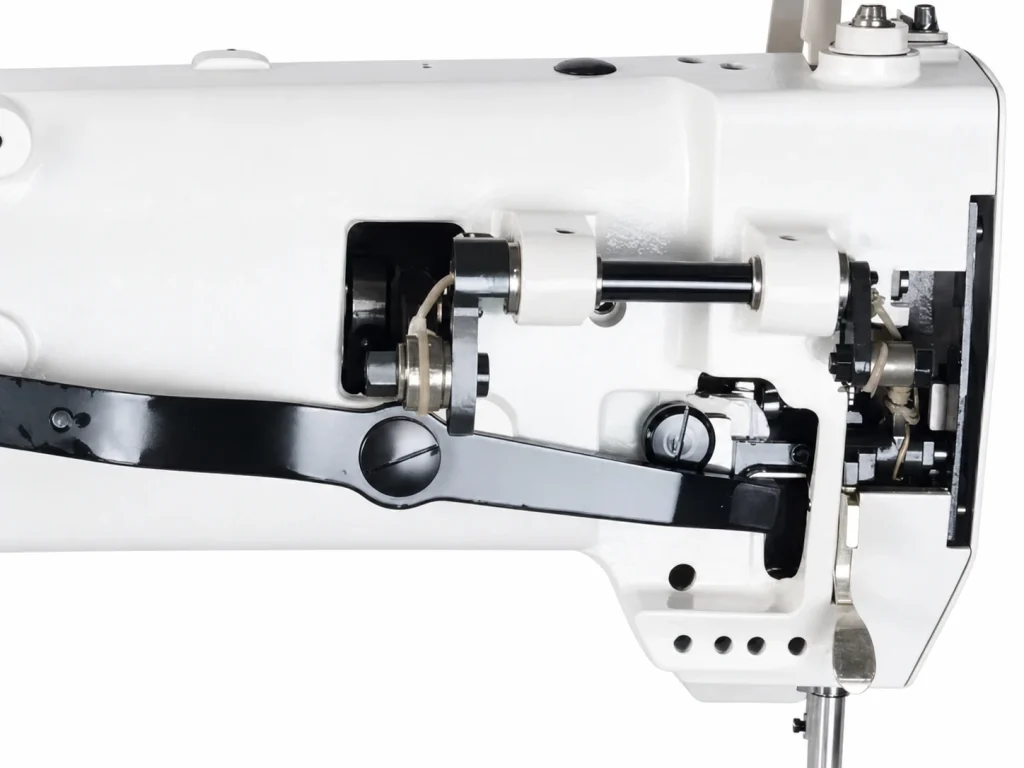

Compound-feed mechanism
The linked presser-foot and needle-feed components help advance layered materials through the cylinder arm.

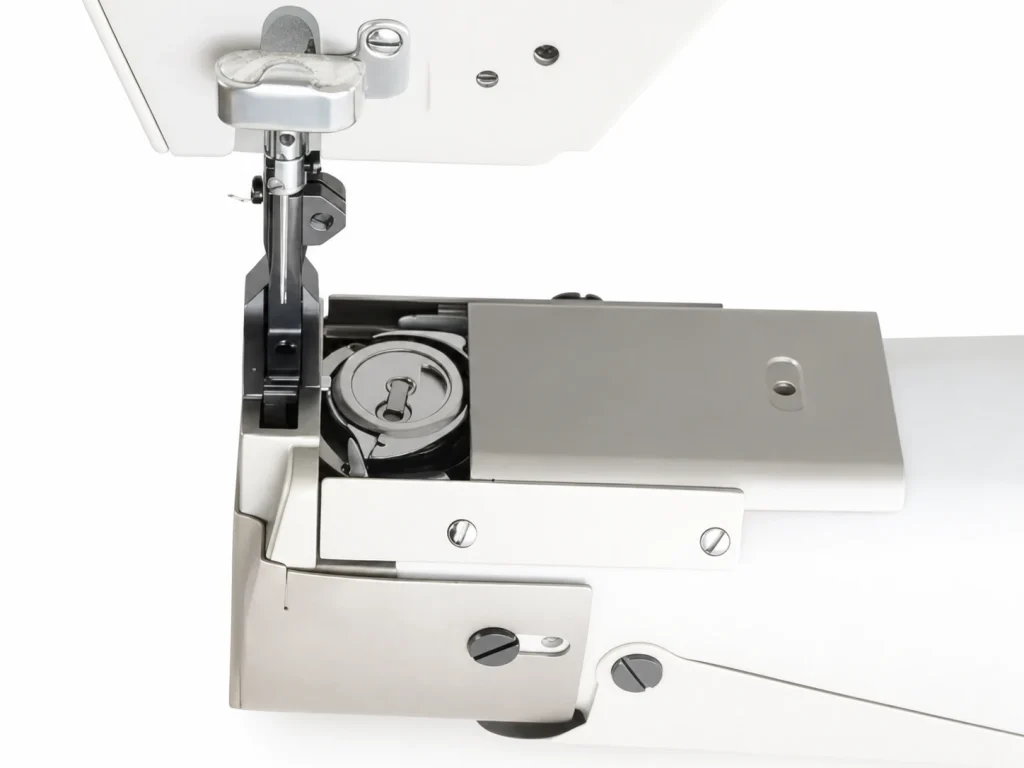

Needle and rotary-hook area
The cylinder-bed sewing zone supports stitching close to shaped leather and luggage components.

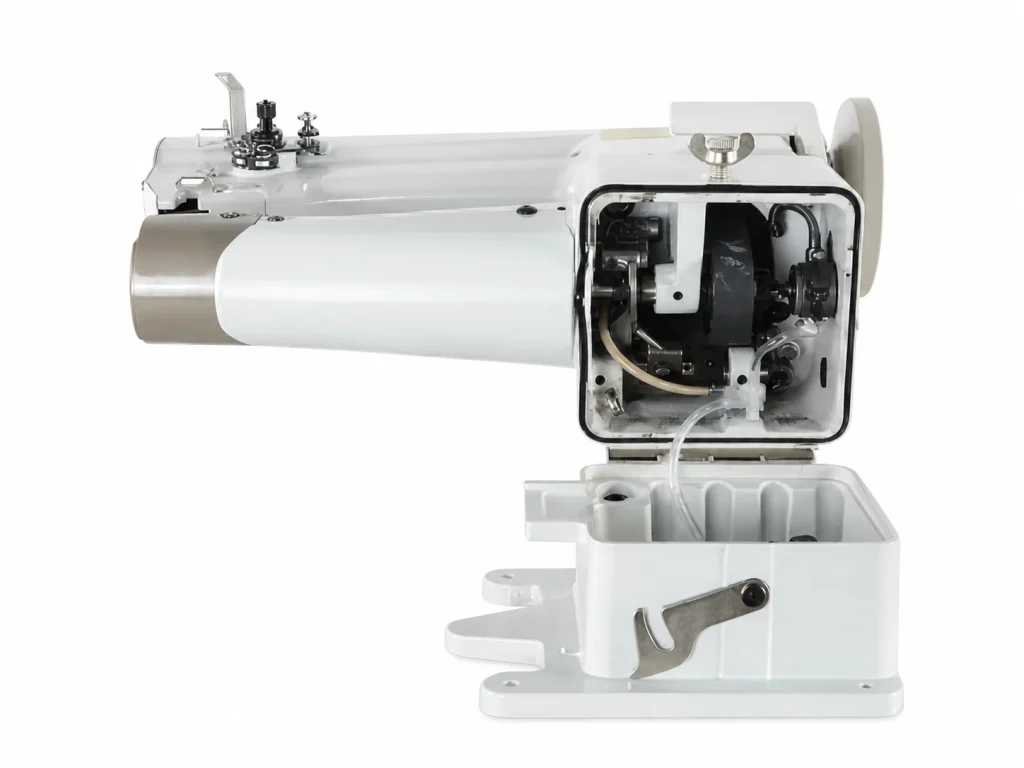

Lower mechanism view
The open lower view shows the mechanical linkage beneath the sewing arm.
Technical data
Technical Data
Confirmed machine parameters are presented below in a clear table.
| Lubrication | Automatic lubrication system |
|---|---|
| Application | Mattress, thick leather, luggage, automotive supplies, multi-layer materials |
| Max. sewing speed | 2000 stitches per minute (spm) |
| Max. stitch length | 9mm (fully adjustable) |
| Feed system | Triple compound feed system (needle, presser foot, feed dog) |
| Presser foot height | Manual 15mm, knee lift 20mm |
| Needle type | DP×17 (#16–#23) |
| Max. material thickness | 10–15mm |
| Cylinder arm diameter | 70mm |
| Stitch type | Single needle lockstitch |
| Voltage | Single phase 110V/220V, global compatible |
