JST-3020GIndustrial Sewing Machines
Automatic Computer Pattern Sewing Machine
Suitable for Heavy-duty materials (genuine leather, canvas, denim, shoe uppers, thick synthetic fabrics)
Include material thickness, product photos, required process, voltage and expected daily output.
What this machine can do
Key Features
Pattern programming display
The touchscreen interface is used to select and manage programmed sewing patterns.

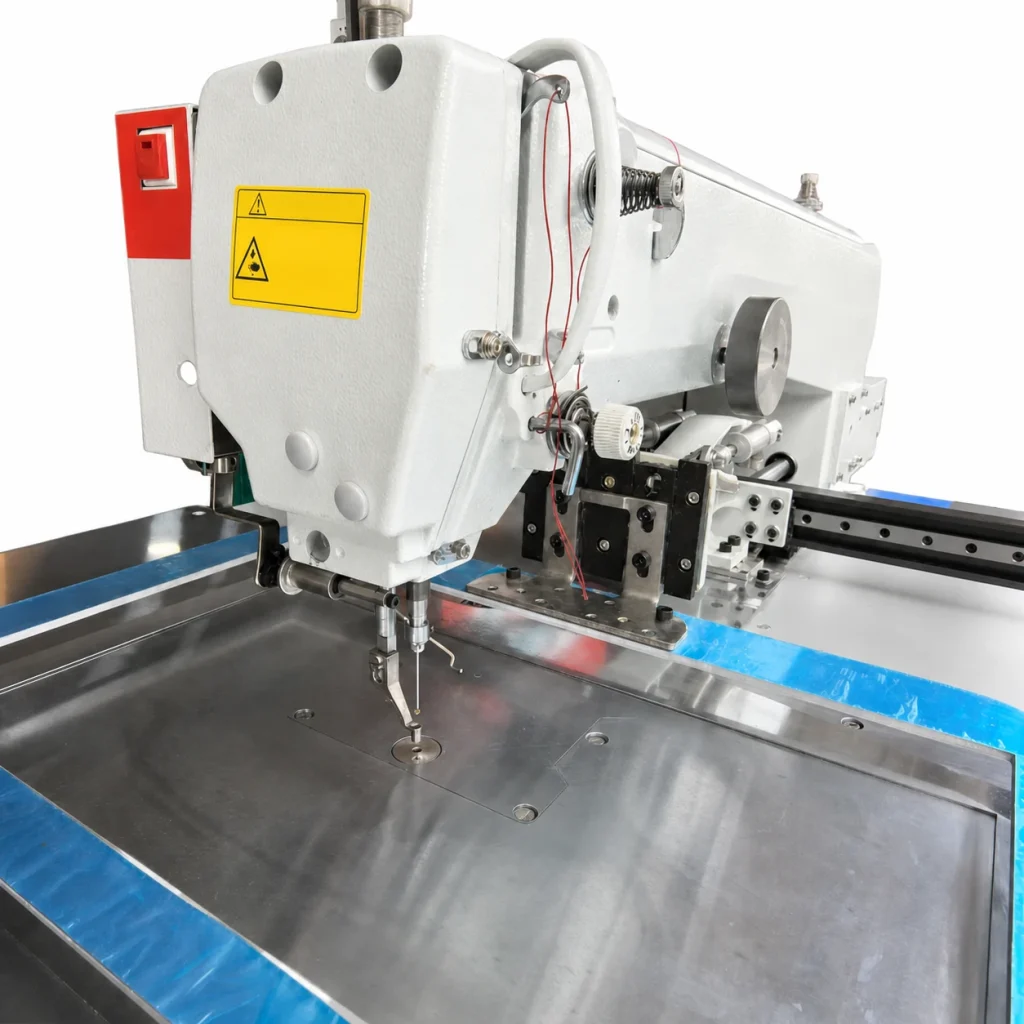

Programmable sewing head
The head and clamp area guide the workpiece through the programmed pattern path.
Technical data
Technical Data
Confirmed machine parameters are presented below in a clear table.
| Lubrication | Semi-automatic low-consumption lubrication system |
|---|---|
| Application | Heavy-duty materials (genuine leather, canvas, denim, shoe uppers, thick synthetic fabrics) |
| Max. sewing speed | 3000 stitches per minute (spm) |
| Max. stitch length | 12.7mm (fully adjustable) |
| Feed system | Automatic computerized feed system |
| Presser foot height | 25mm (external foot lift), 15mm (middle foot lift) |
| Needle bar stroke | 34mm (standard configuration) |
| Needle type | DP×17 (#16–#23) |
| Max. material thickness | 10mm (thick leather/fabric) |
| Pattern storage | Up to 20,000 stitches per pattern, USB import/export support |
| Thread tension control | Standard equipment |
| Weight | 180kg (net weight) |
| Power | 220V single-phase servo motor |
| Voltage | Single phase: 110V/220V, compatible with global voltage standards |
Product inquiry
Get the Correct Model and Configuration
Share your workpiece, material, target output and destination voltage.
