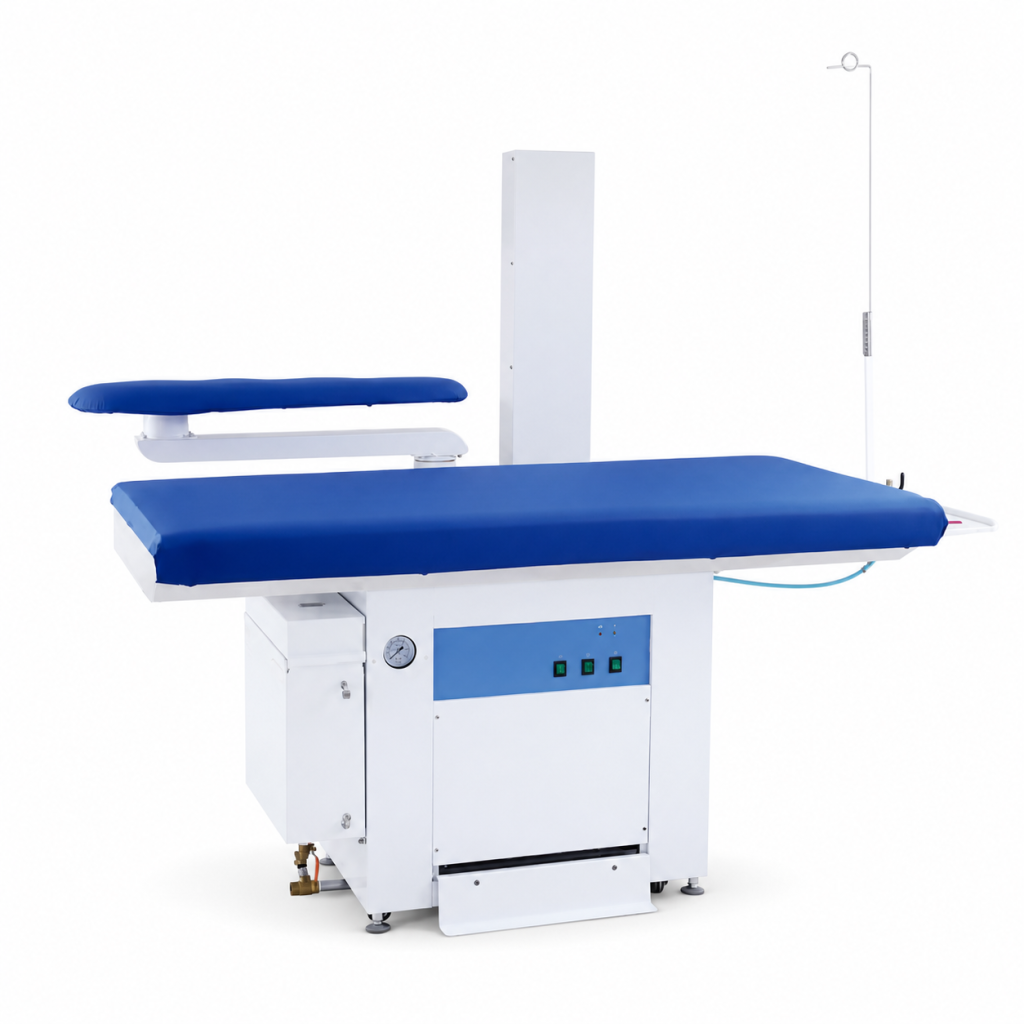

Ironing Table Inbuilt Steam Generator
Industrial Vacuum Steam Ironing Table for industrial production applications.
Include material thickness, product photos, required process, voltage and expected daily output.
Key Features
Integrated Design equipped with a dedicated electric heating steam generator in the machine base, which automatically controls water heating. Large-Caliber Heating Tube – while the power remains the same, the outer volume of the conventional heating tube is increased, and the heating surface of the water in the furnace is enlarged to achieve rapid heating and sufficient steam. High Efficiency & Energy Saving – accurate energy efficiency calculation greatly reduces energy consumption under the premise of satisfying normal use. Movable Casters allow free movement, which is convenient for the factory to adjust the production site. Stainless Steel Stove – the iron does not spray out stains, avoiding staining the clothes.
Technical Data
Confirmed machine parameters are presented below in a clear table.
| Model | JST-TB01 |
|---|---|
| Voltage | 220 V / 110 V/380V |
| Table size | 820 × 1200 × 1500 mm |
| Generator heating power | 4.5 kW / 6 kW |
| Generator pump | 550 W |
| Vacuum pump | 750 W |
| Rotating speed | 2800r/min |
| Suction pressure | ≧150Pa |
| Table heating by steam | Steam heating/Fixed temperature:80-100℃ |
Get the Correct Model and Configuration
Share your workpiece, material, target output and destination voltage.
