JST-1341LIndustrial Sewing Machines

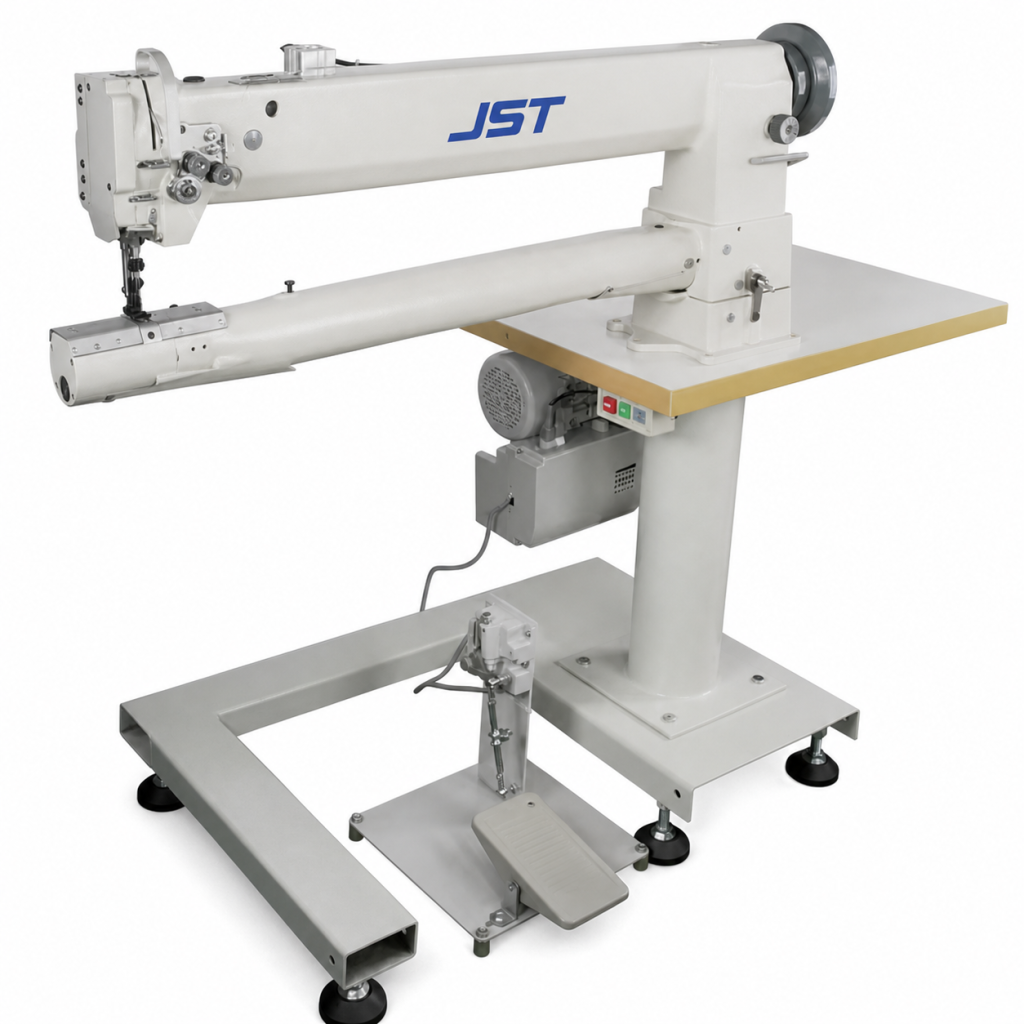

Double Needle Cylinder Bed Heavy Duty Sewing Machine
Dual-needle construction for more efficient synchronized stitching of thick materials.
Include material thickness, product photos, required process, voltage and expected daily output.
What this machine can do
Key Features

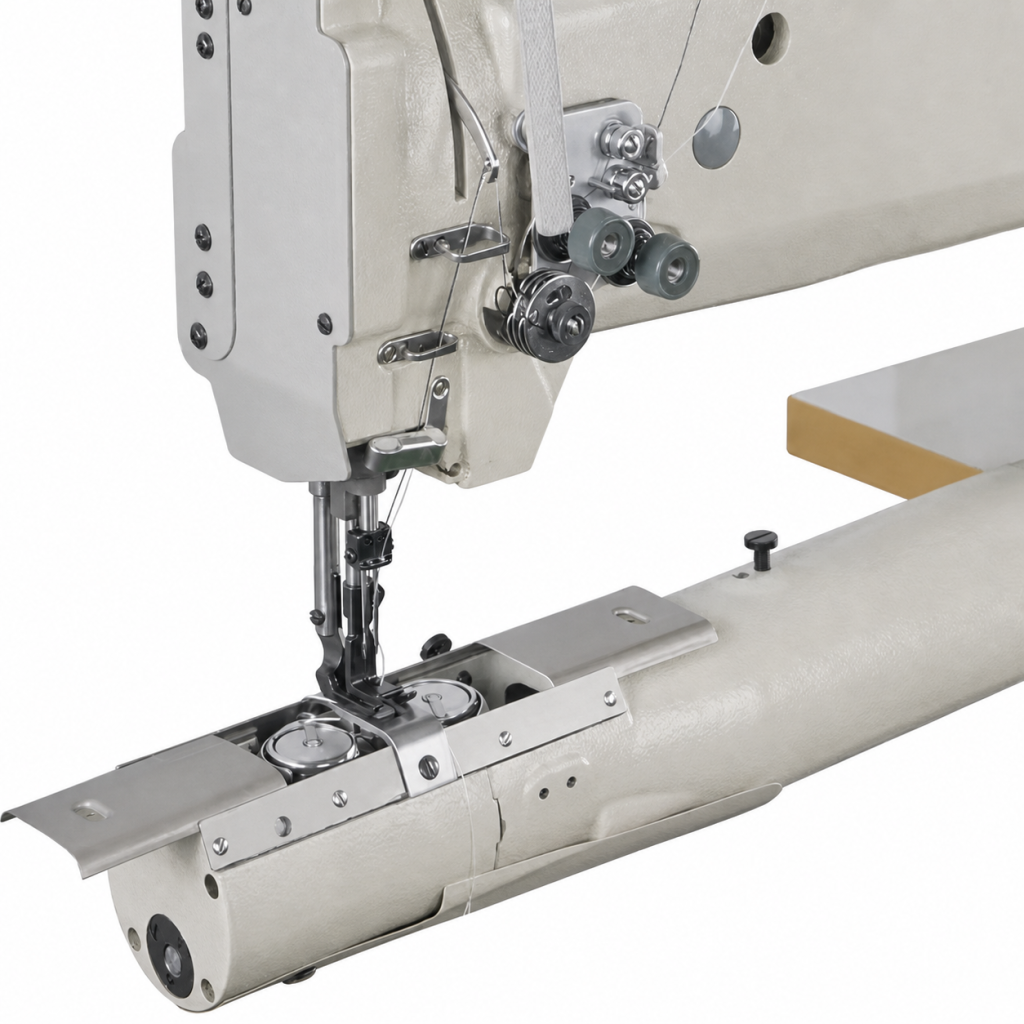

Cylinder-bed access around the needle
The narrow cylinder bed leaves working clearance around the needle area for tubular, curved and layered components.

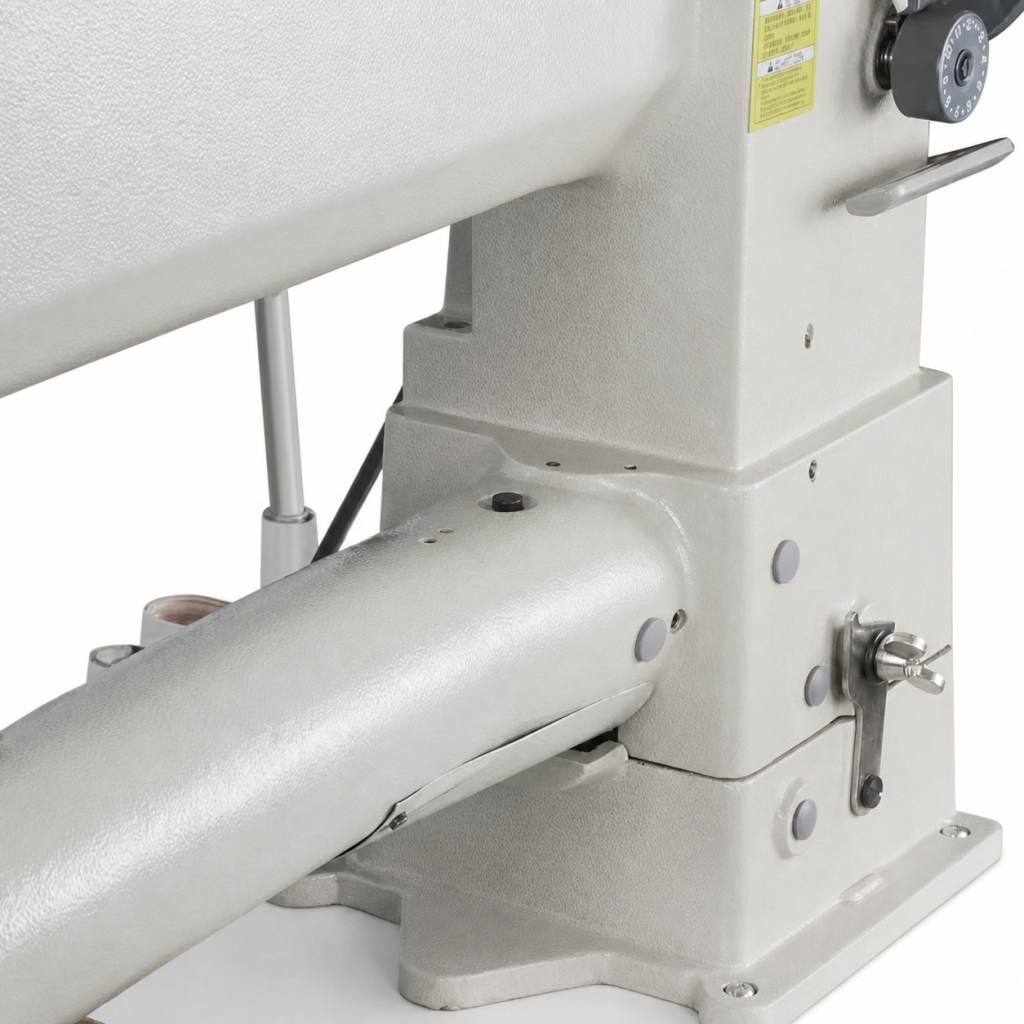

Long-arm workspace for large materials
The extended arm and open cylinder-bed layout provide additional room for larger leather goods and layered workpieces.
Technical data
Technical Data
Confirmed machine parameters are presented below in a clear table.
| Model | JST-1341L |
|---|---|
| Type | Industrial sewing machine |
| Needle count | Double needle |
| Machine configuration | Cylinder bed; cylinder-bed diameter 70 mm |
| Operation | Mechanical |
| Feeding mechanism | Presser-foot feed |
| Stitch type | Flat-machine stitch / lockstitch |
| Maximum sewing thickness | 13 mm |
| Maximum sewing speed | 2,200 rpm |
| Stitch length | 0–10.5 mm |
| Needle | DP × 17 (another page field specifies DP × 17 #21) |
| Presser-foot lift | 8 mm by hand; 13 mm by knee control |
| Hook | Vertical / standard hook |
| Lubrication | Automatic |
| Motor | 750 W electronic energy-saving motor |
| Weight | 42 kg (page attribute) |
| Single-package size | 100 × 55 × 48 cm |
| Gross weight per item | 92 kg |
| After-sales service | Video technical support |
Product inquiry
Get the Correct Model and Configuration
Share your workpiece, material, target output and destination voltage.
