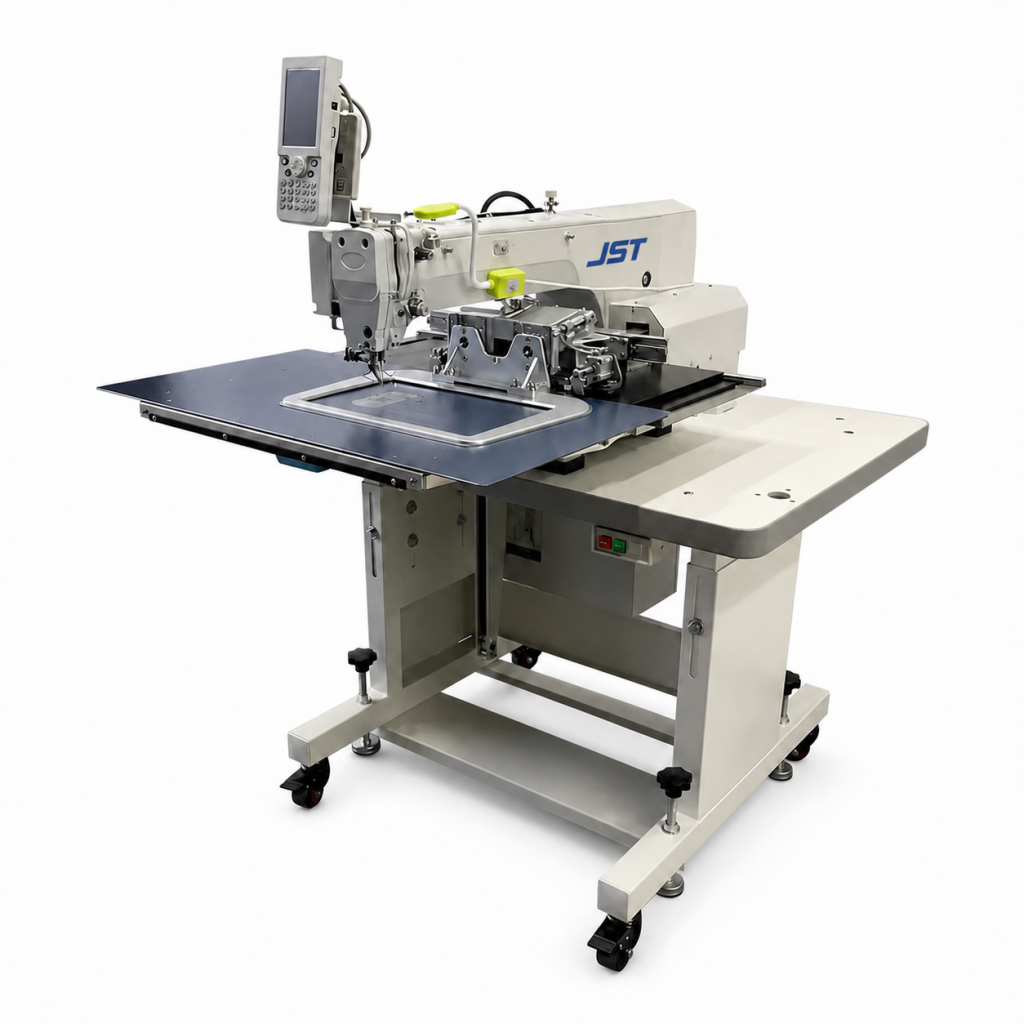

JST-342GIndustrial Sewing Machines
Computerized Pattern Sewing Machine for Upholstery
Programmable computerized control for repeatable pattern sewing.
Include material thickness, product photos, required process, voltage and expected daily output.
What this machine can do
Key Features

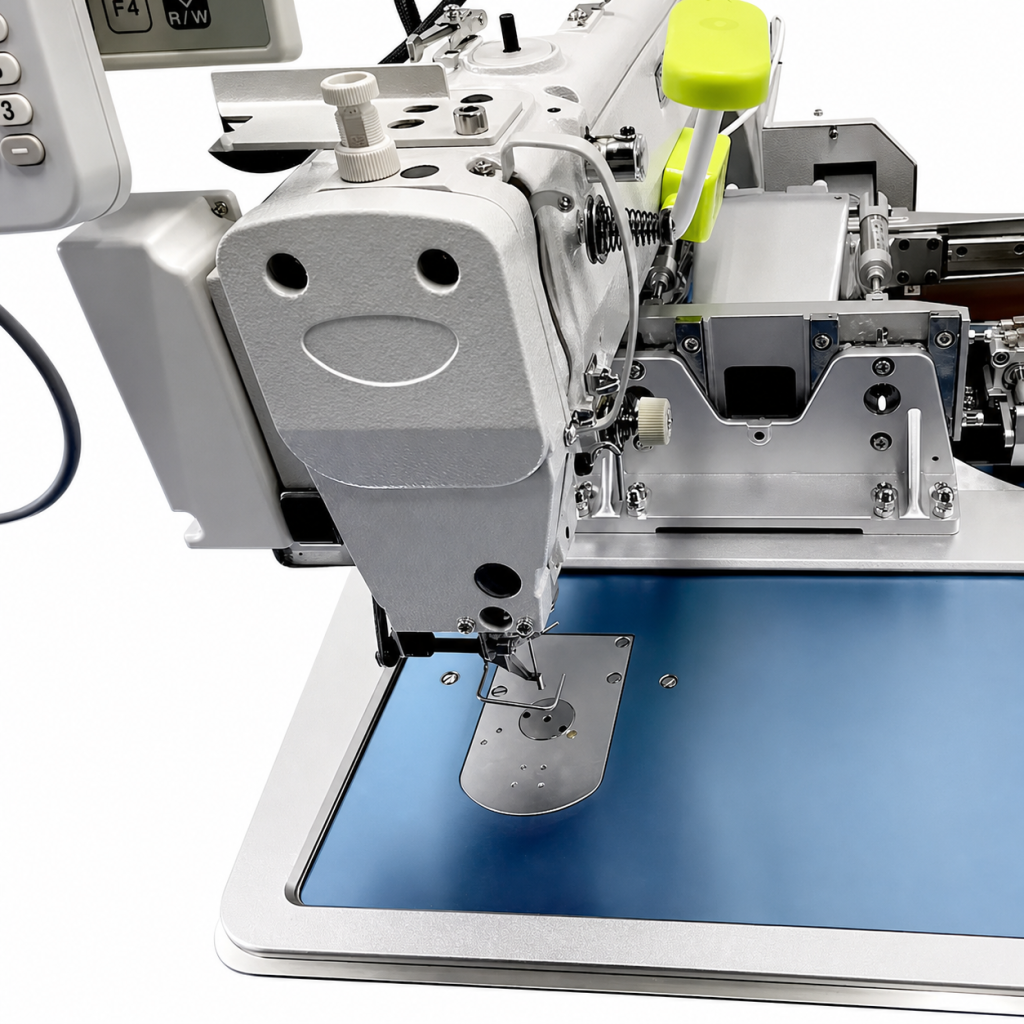

Guided pattern-sewing head
The compact sewing head keeps the needle, guide and material-control components close to the working area, supporting controlled placement during programmed pattern sewing.

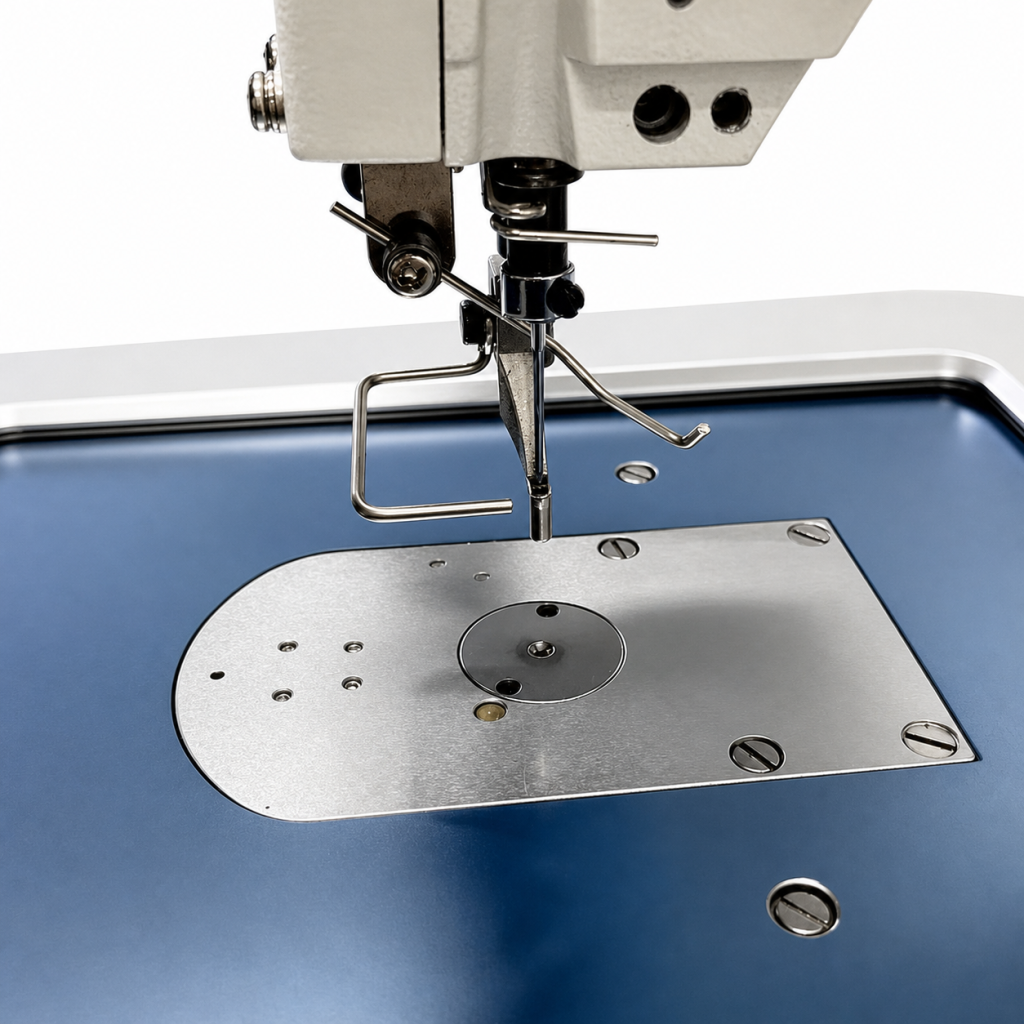

Open needle-area work platform
The open flat work surface around the needle provides room to position upholstery and leather components while keeping the stitch area visible.

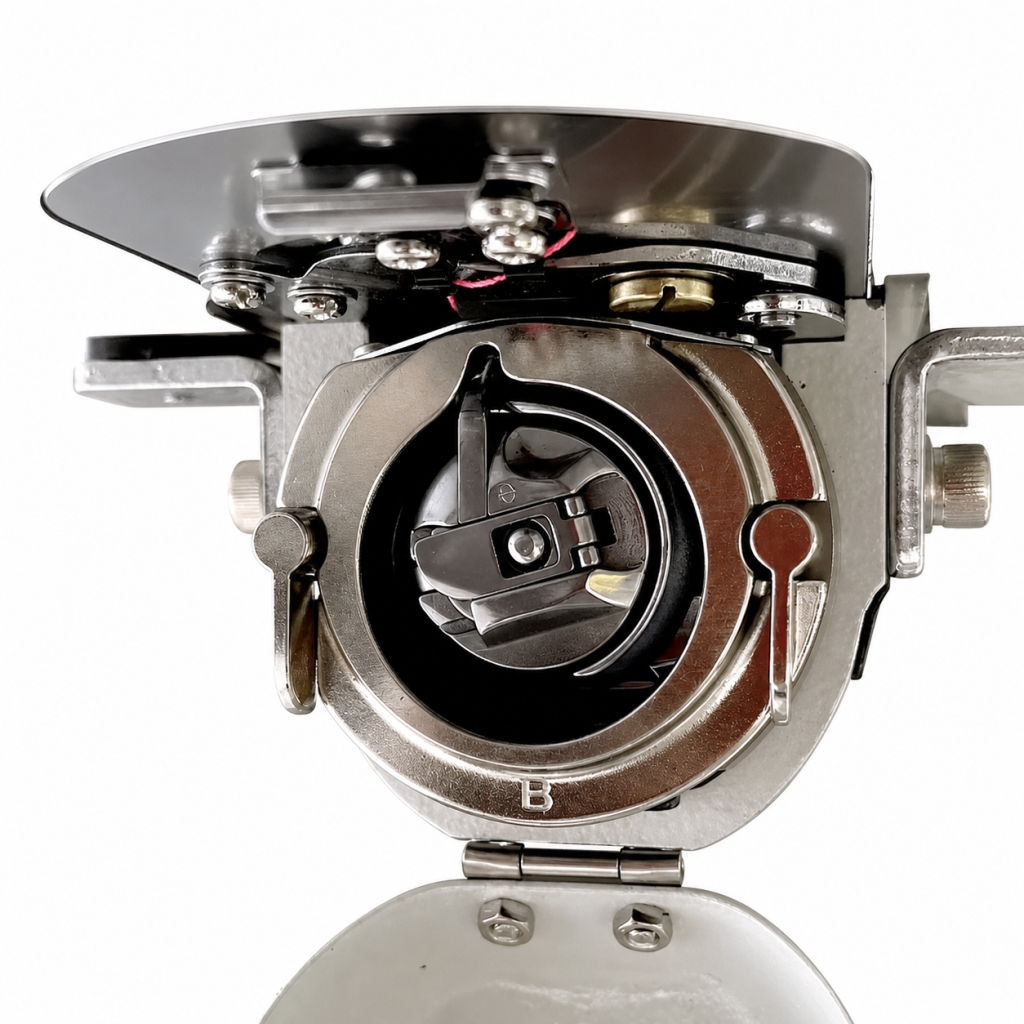

Accessible rotary hook system
The rotary hook and bobbin area is easy to reach for bobbin changes, cleaning and routine maintenance.
Technical data
Technical Data
Confirmed machine parameters are presented below in a clear table.
| Model | JST-342G |
|---|---|
| Type | Industrial sewing machine |
| Operation | Computer controlled |
| Feeding mechanism | Compound feed |
| Needle | Single needle, DPX 17 |
| Stitch type | Flat-machine stitch / lockstitch |
| Feature | Programmable |
| Maximum sewing speed | 2,700 rpm |
| Maximum sewing thickness | 10 mm |
| Stitch length | 0.1–12.7 mm |
| Power | 750 W |
| Voltage | 220V / 110V |
| Weight | 200 kg |
| Applications | Leather goods, pattern sewing, production workshops |
