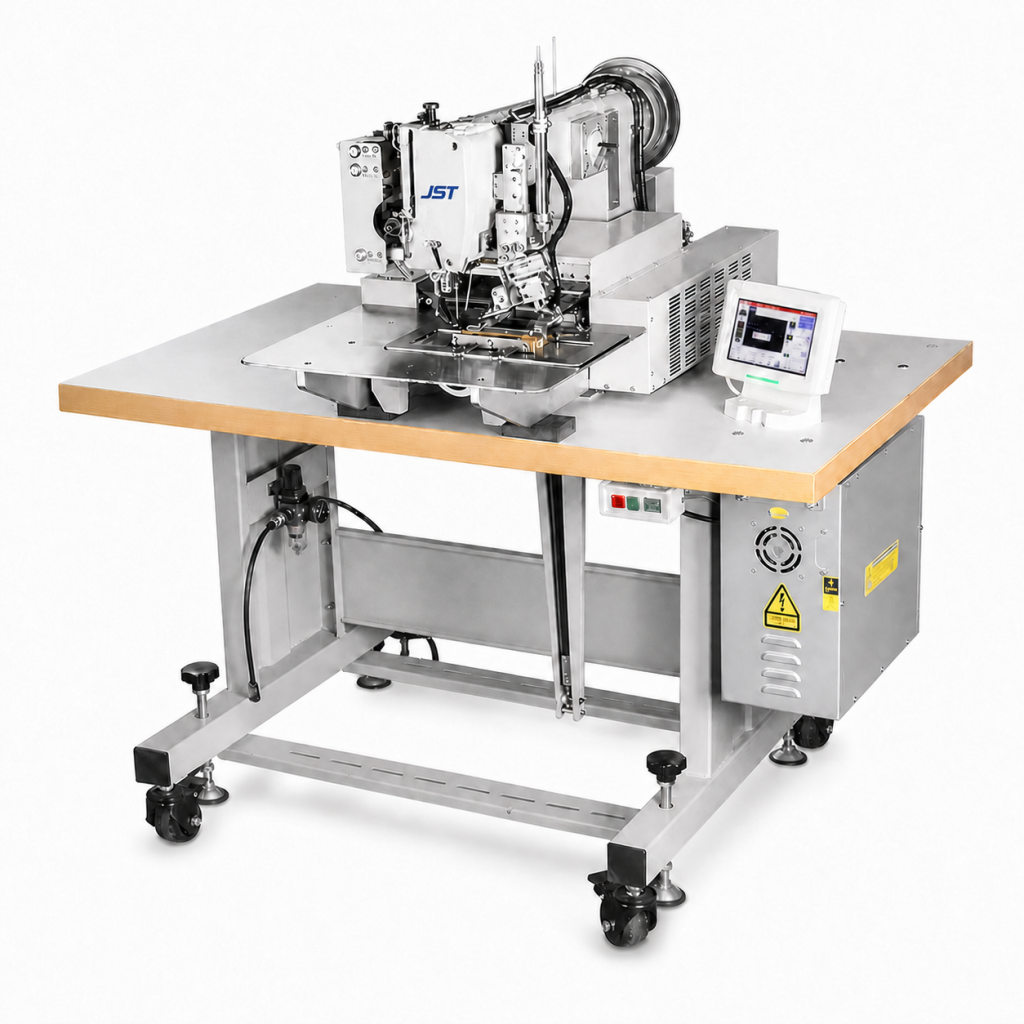

JST-T1560HIndustrial Sewing Machines
Computerized Belt Buckle Pattern Sewing Machine
Metal construction for long-term and high-volume use.
Include material thickness, product photos, required process, voltage and expected daily output.
What this machine can do
Key Features

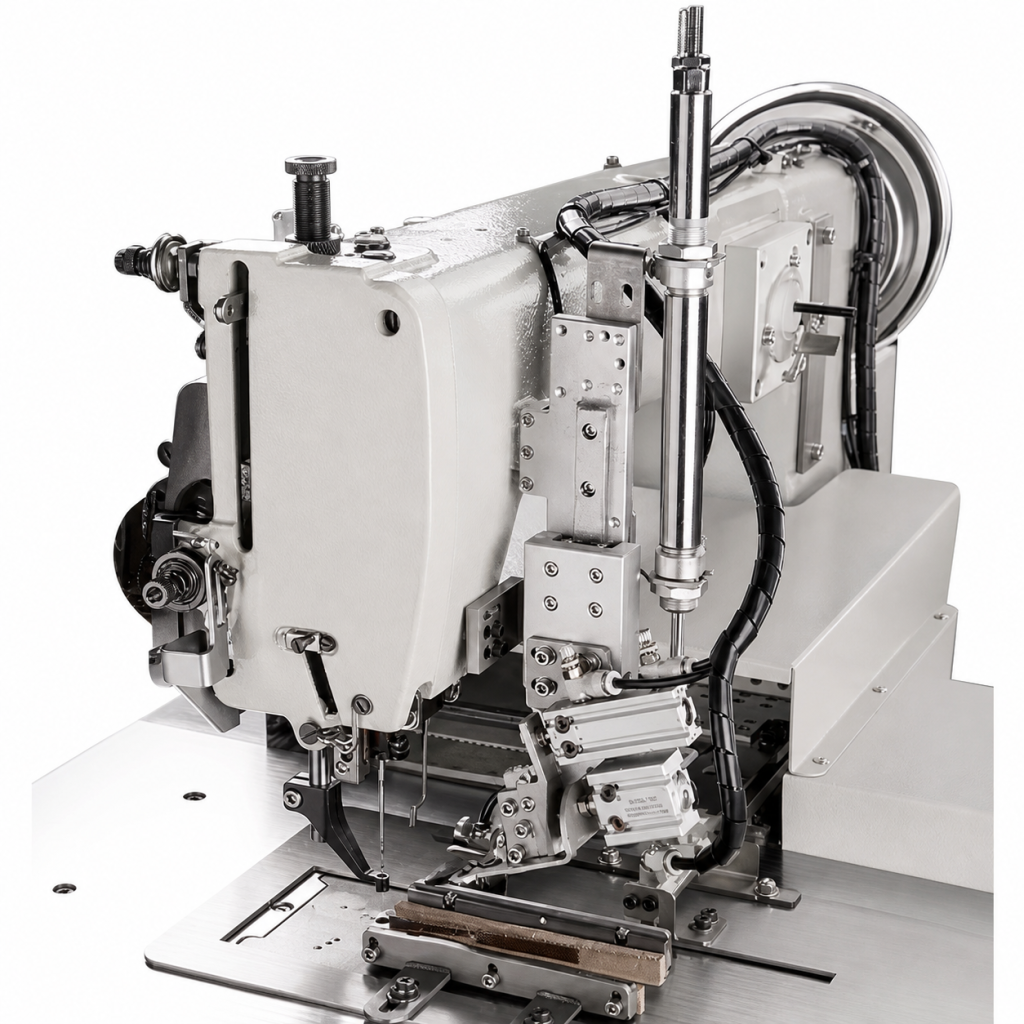

Belt buckle clamping and stitching station
The dedicated fixture keeps belt buckle components aligned close to the needle for repeatable pattern stitching.

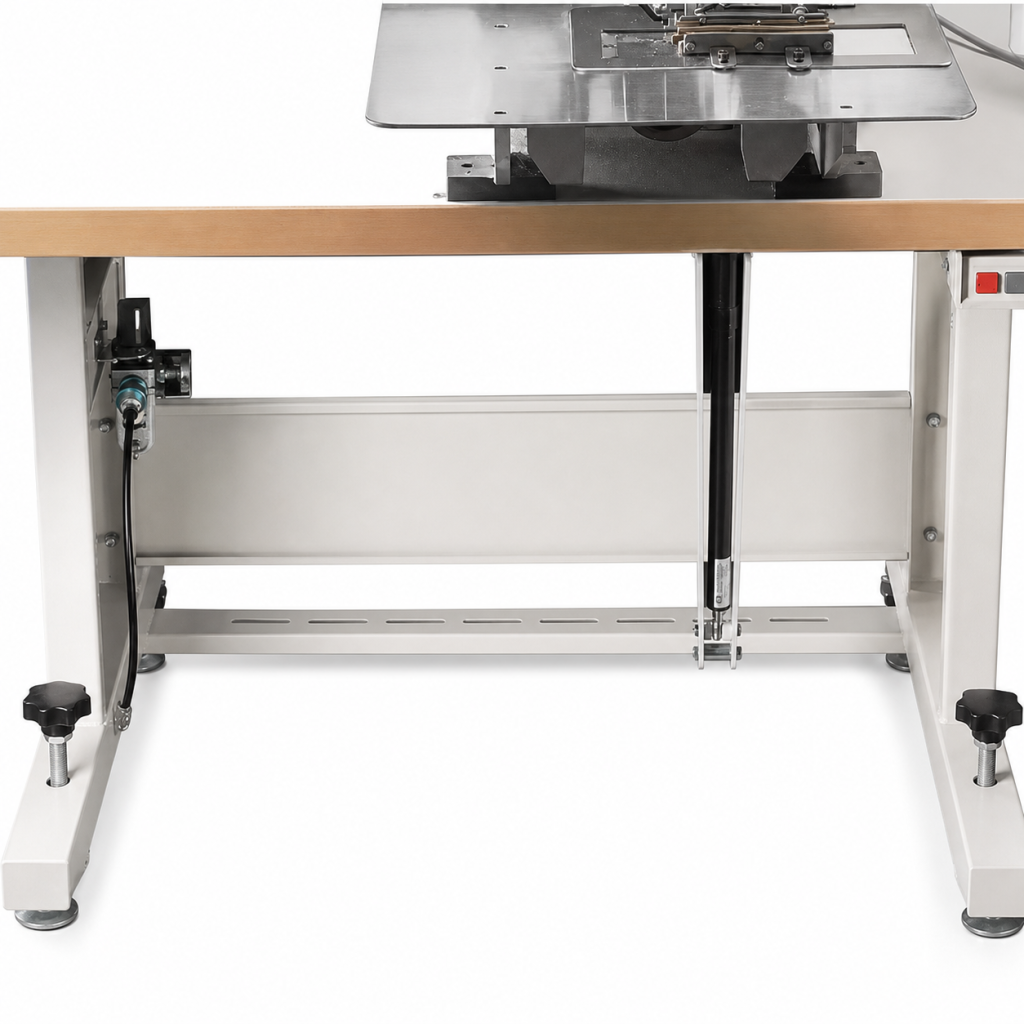

Foot-operated machine control
The under-table pedal linkage allows the operator to control the sewing cycle while keeping both hands available for material positioning.
Technical data
Technical Data
Confirmed machine parameters are presented below in a clear table.
| Model | JST-T1560H |
|---|---|
| Type | Industrial sewing machine |
| Operation | Computer controlled |
| Machine configuration | Flat sewing table |
| Feeding mechanism | Automatic |
| Needle | 16 |
| Stitch formation | Lockstitch |
| Stitch length | 0.1–12.8 mm |
| Power | 750 W |
| Voltage | 110V / 50Hz |
| Overall dimensions | 1200(W) × 1100(D) × 1170(H) mm |
| Net weight | 200 kg; gross weight per item: 210 kg |
| Material | Metal |
| Core component | PLC |
| Application | Tailor shops |
Product inquiry
Get the Correct Model and Configuration
Share your workpiece, material, target output and destination voltage.
