JST-jstYIndustrial Sewing Machines

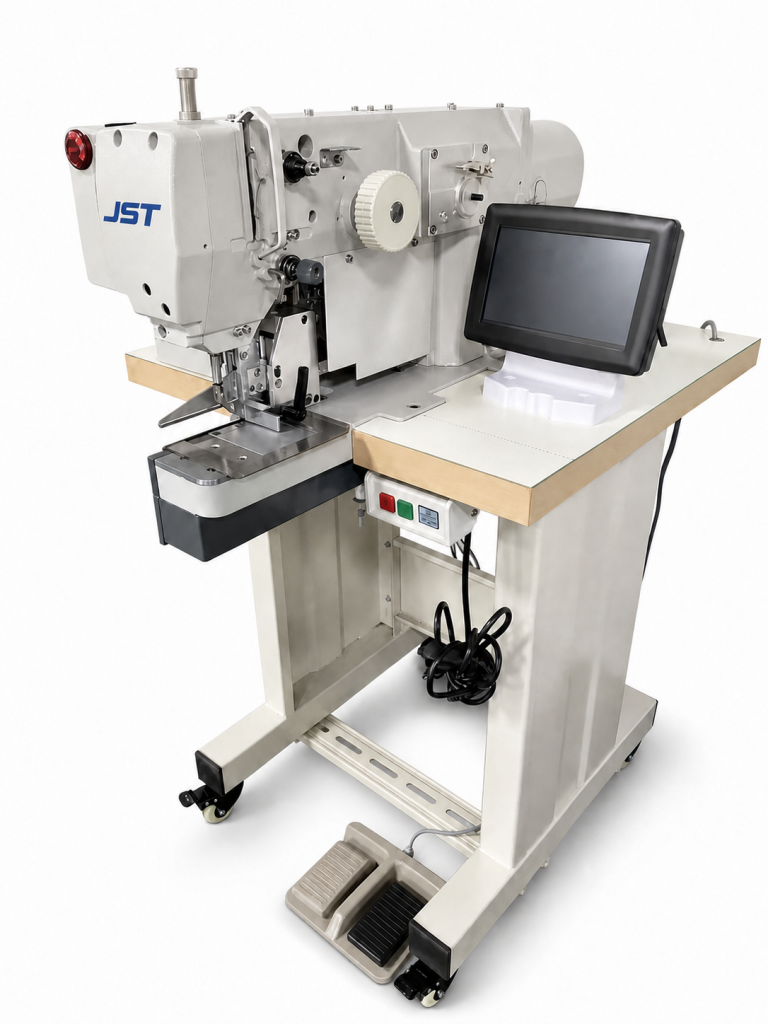

Automatic Belt Buckle Component Stitching Sewing Machine
For automated stitching of belt-buckle and thick-material components.
Include material thickness, product photos, required process, voltage and expected daily output.
What this machine can do
Key Features

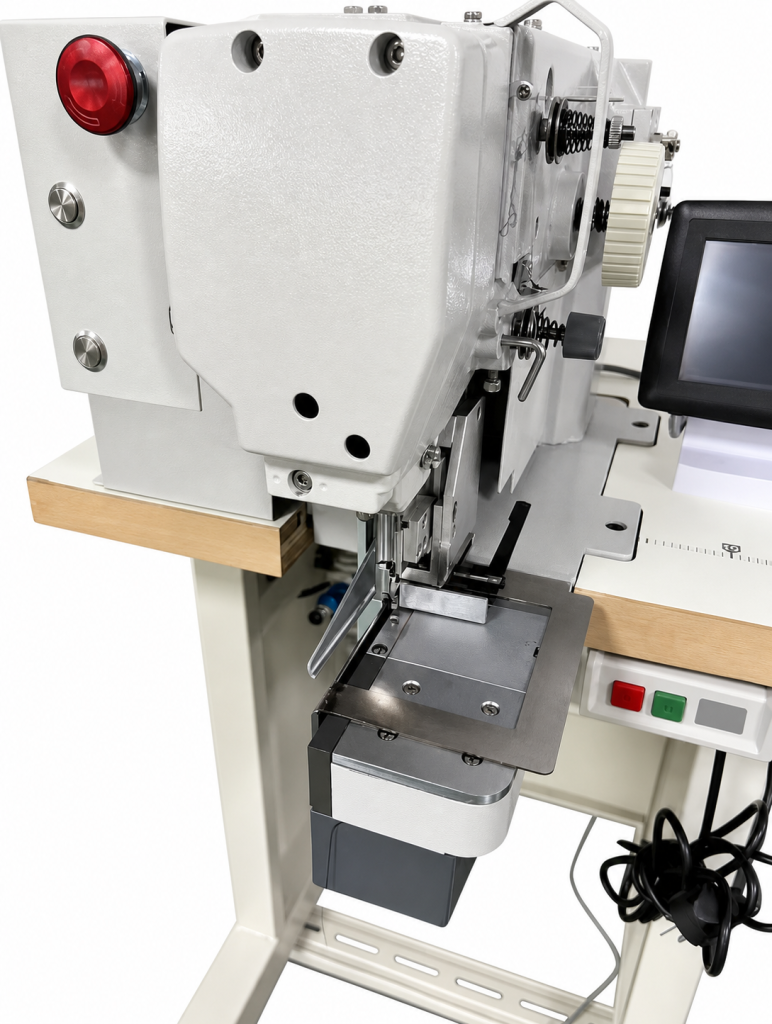

Dedicated buckle-component sewing station
The compact working head and fixture support controlled stitching of narrow buckle components.

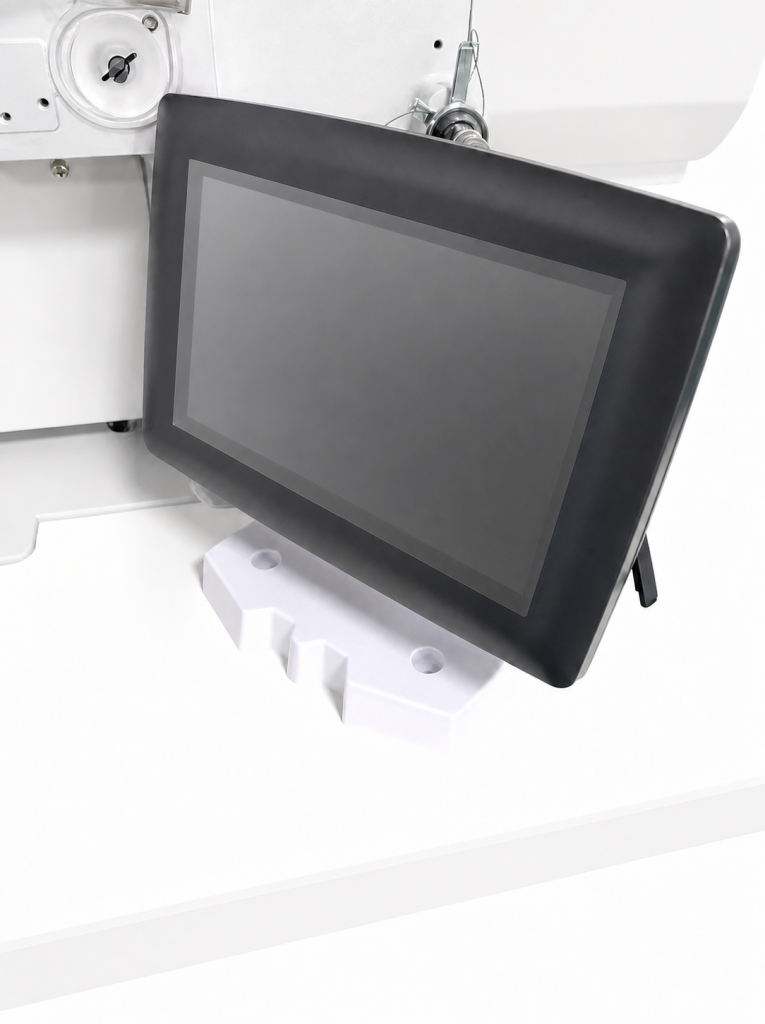

Touchscreen operation
The angled touchscreen keeps operating controls visible and within easy reach during setup and production.
Technical data
Technical Data
Confirmed machine parameters are presented below in a clear table.
| Model | JST-jstY |
|---|---|
| Type | Industrial sewing machine / webbing sewing |
| Machine configuration | Flat bed |
| Stitch type | Chain stitch |
| Operation | Computer controlled |
| Feeding mechanism | Presser-foot feed |
| Maximum sewing thickness | 15 mm |
| Maximum sewing speed | 2,500 stitches per minute |
| Stitch length | 1–12.7 mm |
| Automatic presser-foot lift height | 12 mm |
| Servo motor | 750 W |
| Weight | 85 kg |
| Core components | Gears, motor, bearings |
| Packaging | Wooden case; Guangzhou or Shenzhen port |
| Supply ability | 300 pieces per month |
Product inquiry
Get the Correct Model and Configuration
Share your workpiece, material, target output and destination voltage.
