JST-3020Industrial Sewing Machines

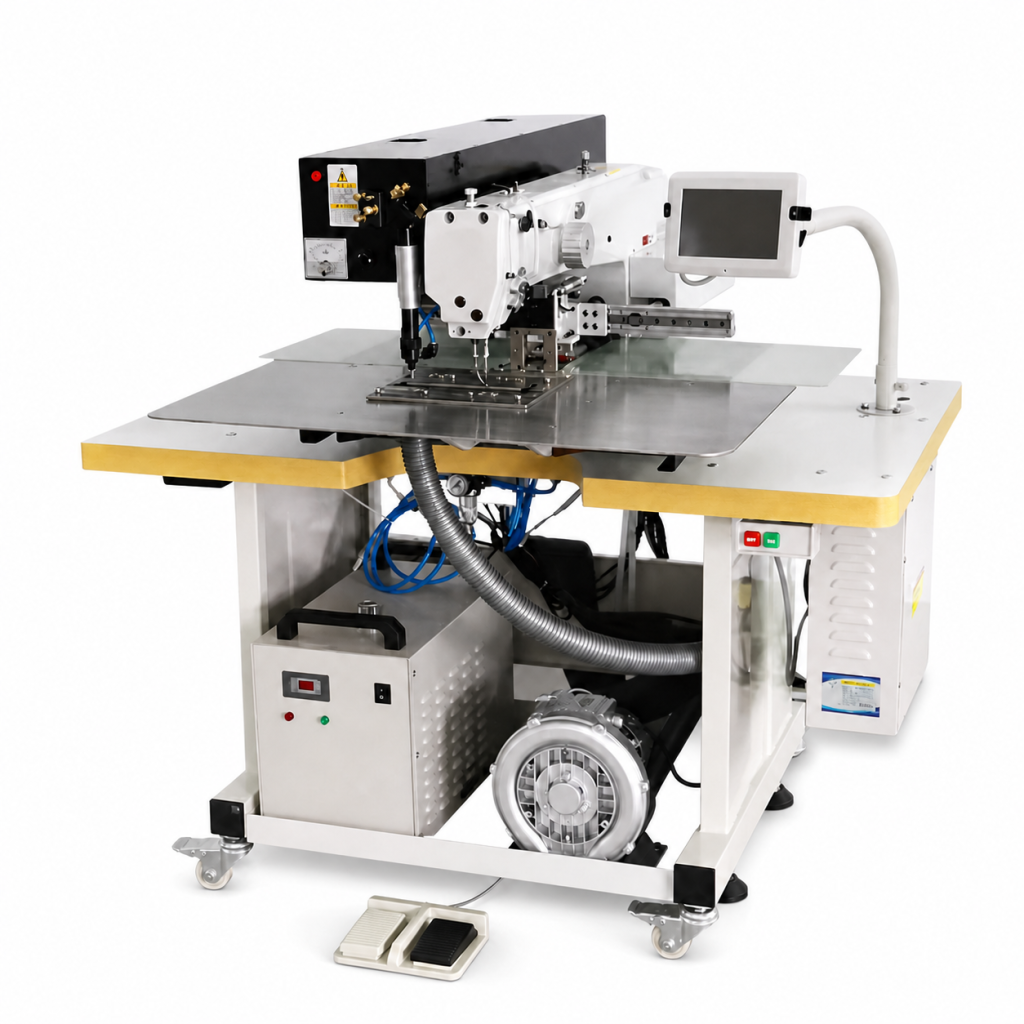

Automatic Laser Pocket Welting Sewing Machine
For automated laser pocket opening, zipper-pocket work, and pocket attachment.
Include material thickness, product photos, required process, voltage and expected daily output.
What this machine can do
Key Features
Laser pocket opening and welting support repeatable pocket production.
Computerized, template-based operation helps maintain consistent pocket placement.
Technical data
Technical Data
Confirmed machine parameters are presented below in a clear table.
| Model | JST-3020 |
|---|---|
| Type | Industrial sewing machine |
| Operation | Computer controlled |
| Machine configuration | Cylinder bed |
| Feeding mechanism | Presser-foot feed |
| Needle | Single needle, DPX 17 |
| Stitch type | Flat-machine stitch / lockstitch |
| Maximum sewing speed | 3,000 stitches per minute |
| Maximum sewing thickness | 10 mm |
| Stitch length | 0–12 mm |
| Power | 1,000 W |
| Voltage | 220V / 110V |
| Overall dimensions | 1500 × 1600 × 1500 mm |
| Single-package size | 160 × 130 × 140 cm |
| Gross weight per item | 280 kg |
Product inquiry
Get the Correct Model and Configuration
Share your workpiece, material, target output and destination voltage.
